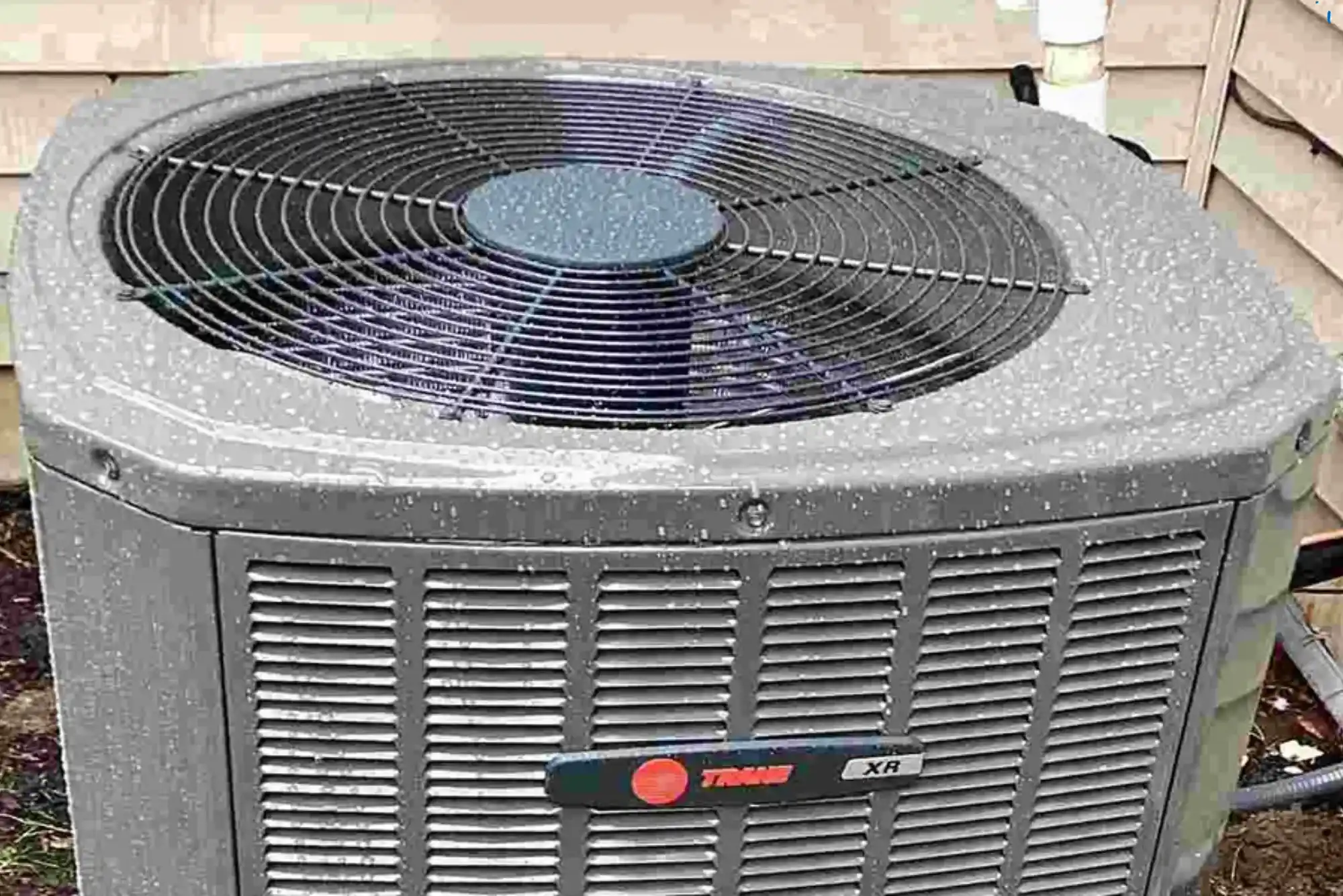

Air conditioning systems are crucial for maintaining indoor comfort, and their performance depends heavily on the efficiency of fan motors and blowers. The fan motor is responsible for moving air across the coils, while the blower ensures proper air distribution throughout the system. When either component malfunctions, the entire system can underperform or even fail. Understanding how to test AC fan motors and blowers is essential for technicians and homeowners who want to ensure smooth operation and prevent costly repairs. This detailed guide will cover the step-by-step approach to testing, the signs of motor or blower failure, and the importance of preventive maintenance.
Importance of AC Fan Motors and Blowers
Air conditioning systems rely on multiple components to function correctly, but the fan motor and blower are among the most critical. The fan motor drives the air movement, ensuring that conditioned air flows through the ductwork. Without a functioning motor, the evaporator coil may freeze, the compressor may overheat, and the overall efficiency of the AC system will decline. Similarly, the blower distributes this air into the living space, creating the desired cooling effect.
Malfunctioning motors or blowers lead to weak airflow, inconsistent cooling, and higher energy bills. For this reason, proper testing and early diagnosis can prevent small issues from escalating into expensive repairs or complete system replacements.
Recognizing the Symptoms of Faulty AC Fan Motors and Blowers
Before testing an AC fan motor or blower, it is essential to identify the symptoms of a potential issue. A malfunctioning fan motor may produce unusual noises such as humming, buzzing, or grinding. Reduced airflow from the vents is another common sign, as is uneven cooling in different rooms of the building.
Blower problems often manifest as slow or weak air distribution, vibration, or intermittent airflow. In some cases, a burning smell might indicate overheating motor windings. Recognizing these early symptoms helps determine whether testing and troubleshooting are required before the system experiences complete failure.
Preparing for AC Fan Motor and Blower Testing
Testing AC fan Motors and Blowers requires a systematic approach to avoid misdiagnosis and ensure safety. Before starting any inspection or testing, disconnect the power supply to the air conditioning unit to eliminate the risk of electric shock.
Gather essential tools such as a digital multimeter, a clamp meter, and a capacitor tester if the fan motor uses a start capacitor. Protective gear, including insulated gloves and safety glasses, ensures that testing procedures remain safe. Thorough preparation is crucial because AC systems operate with high voltage components, and accidental contact can be dangerous.
Visual Inspection of the Fan Motor and Blower
A professional test always begins with a visual inspection. Look for signs of physical damage, including burnt wiring, loose connections, or frayed insulation. The blower housing should be free from debris or dust accumulation, as excess dirt can cause imbalances and overheating.
Check the fan blades for obstructions or misalignment. Bent blades can disrupt airflow and strain the motor, leading to premature failure. Inspecting the capacitor connected to the motor is also vital, as a faulty capacitor often results in slow or non-operational fans. Visual checks often reveal problems that do not require advanced testing tools to identify.
Testing the Fan Motor with a Multimeter
A multimeter is an essential tool for testing the electrical integrity of an AC fan motor. Begin by measuring the motor’s resistance to check for continuity. Place the multimeter leads on the motor terminals and observe the reading. Infinite resistance indicates a broken winding, while zero resistance suggests a short circuit.
Once continuity is confirmed, switch the multimeter to the capacitance or voltage mode if the motor uses a capacitor. A failing capacitor can prevent the fan from starting or running efficiently. Comparing the reading to the rated value printed on the capacitor provides a clear indication of its health.
Voltage testing ensures that the motor is receiving the correct supply. Place the multimeter leads on the input terminals while the system is running. If voltage is within the acceptable range and the motor does not operate,Post Category, the motor itself may require replacement.
Assessing the Blower’s Performance
The blower’s effectiveness can be evaluated through both visual and functional tests. Check whether the blower wheel spins freely without resistance. A stiff or noisy rotation may indicate worn bearings or debris in the housing.
When powered on, observe the airflow from the vents. Weak or uneven airflow suggests that the blower is not operating at full capacity. Measuring the blower’s amperage draw with a clamp meter allows you to confirm whether it is running within the manufacturer’s specified current range. Exceeding the rated amperage often signals an overworked or failing blower motor.
Checking the Capacitor and Electrical Connections
Fan motors and blowers commonly rely on capacitors for startup and continuous operation. A weak or defective capacitor results in sluggish motor performance or complete failure to start. Testing the capacitor with a dedicated meter ensures accurate readings.
Equally important are the electrical connections. Loose or corroded terminals can cause voltage drops, overheating, or intermittent motor operation. Tightening the connections and cleaning any corrosion improves reliability and reduces the risk of electrical failure.
Evaluating Motor Bearings and Lubrication
The bearings inside the fan motor are critical for smooth operation. Worn-out bearings produce grinding or squealing noises and lead to increased friction, causing the motor to overheat. Rotating the motor shaft by hand provides an immediate sense of bearing condition.
Some motors feature oil ports for lubrication. Regularly adding a few drops of motor oil can extend the life of the bearings and reduce operational noise. Neglecting lubrication often accelerates wear and tear, eventually leading to motor replacement.
Safety Measures During Testing
Working with AC fan motors and blowers involves exposure to electricity and moving components, making safety a top priority. Always ensure the power is disconnected before touching the internal parts. Use insulated tools and avoid loose clothing that can get caught in moving parts.
Capacitors can store electrical charge even after power is off, so discharge them before handling. Observing these safety practices protects technicians from accidents and ensures reliable test results.
Interpreting Test Results and Making Repairs
Once the testing process is complete, interpret the results to determine the next steps. If the motor fails the continuity or voltage test, replacement is usually the most effective solution. Blowers with excessive vibration or worn bearings may require either bearing replacement or complete motor assembly replacement.
In cases where the capacitor is faulty, replacing it restores motor performance. Correcting minor issues promptly prevents further damage to the compressor, coil, or other connected AC components.
Preventive Maintenance for Fan Motors and Blowers
Routine preventive maintenance is the best way to avoid future breakdowns. Cleaning the blower wheel, inspecting the motor housing, and lubricating bearings extend the life of these components. Monitoring airflow regularly ensures that any decline in performance is addressed quickly.
Scheduling seasonal inspections before heavy cooling demand periods helps maintain system efficiency and avoid unexpected failures during peak summer months.Testing AC fan motors and blowers is a critical skill for maintaining optimal air conditioning performance. By following a structured approach that includes visual inspection, multimeter testing, blower evaluation, and capacitor checks, you can accurately diagnose and resolve potential issues. Prioritizing safety, preventive maintenance, and timely repairs ensures that your AC system operates efficiently and reliably.
